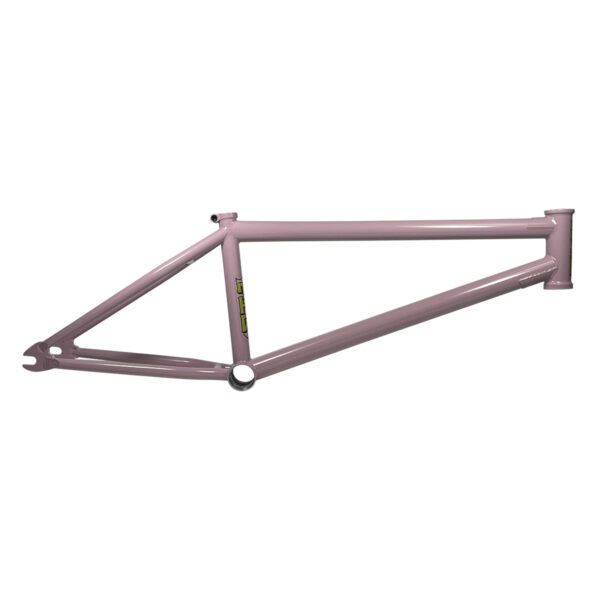

THD STREET FRAME

Original price was: $519.95.Current price is: $389.95.

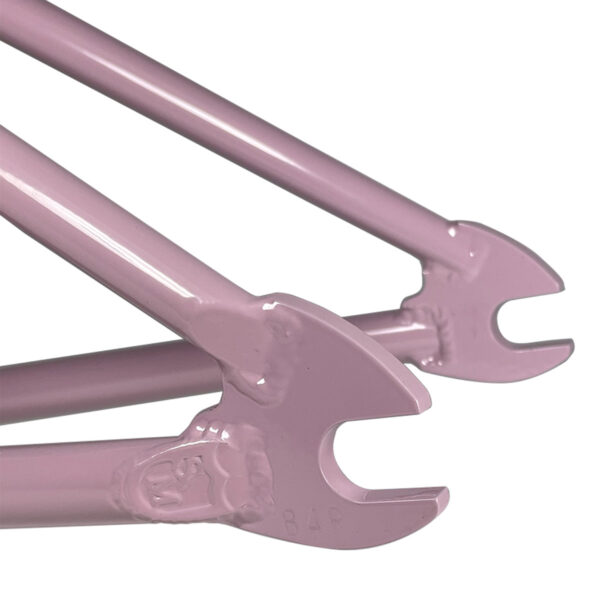

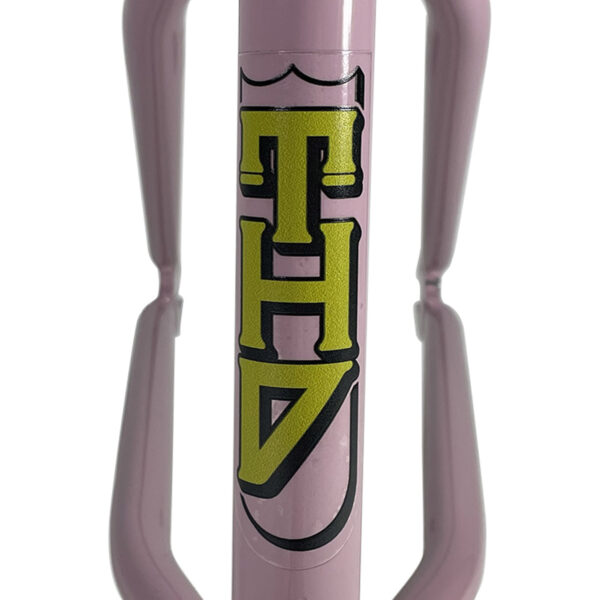

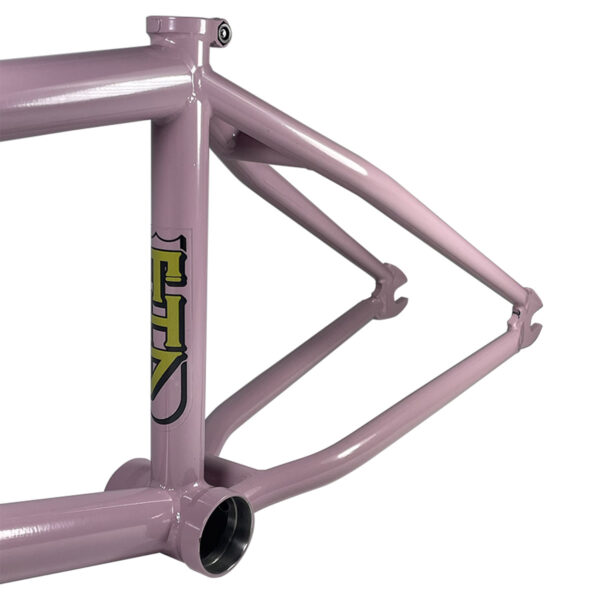

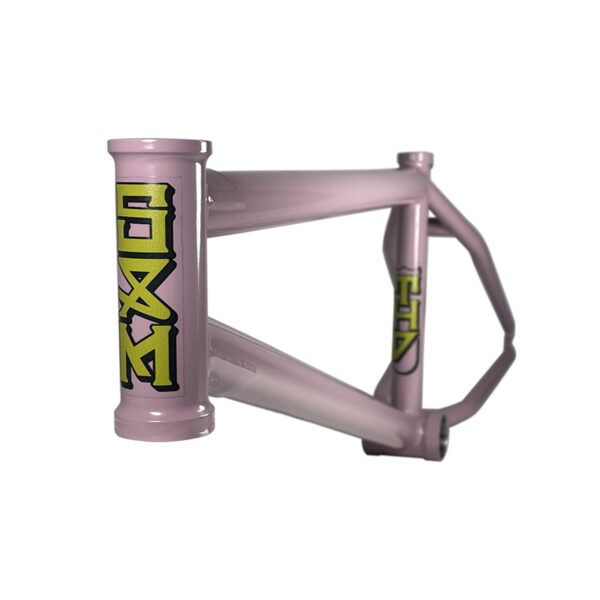

Our THD Street Frame is an updated version of the Holy Diver frame. It was originally designed as an all-around frame but has been transformed into our most street-specific model. Its ¼” thick, compact, heat-treated dropouts are ultra-strong and allow for ample peg clearance. And the taller head tube reduced the number of stem spacers needed for a cleaner looking and more solid front end. This updated version known as the THD or “Tall Hold Diver” has a 9.25” stand-over that looks more proportioned with the taller head tube and we spread the top and down tubes apart as well. We’ve added a thicker .049” straight-gauge ThermalX downtube to resist denting and we’ve removed all brake mounts for a cleaner look. To wrap things up Hoder designed some new stickers, and we added a 20.25” TT option.



SKU: N/A Categories: , Tags: , , , , , Brand:
TOP TUBE LENGTH 20″, 20.25″,20.5″,20.75″,21″
REAR END LENGTH 12.7″-13″
HEAD TUBE ANGLE 75.5°
HEAD TUBE STYLE 5″ Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Investment Cast
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.7″
BB STYLE Mid
STANDOVER HEIGHT 9.25″
BRAKE MOUNTS No Brake Mounts
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 20.75″ TT 5.1 lb (2.31 kg)
TUBESET ThermalX (Thicker DT)
