BIG JUMPER 26″ FRAME

$799.95

No longer taking pre-orders – shipping beginning mid-May.

We believe 20” bikes are the original Dirt Jumpers and giving that moniker to 26” frames blows, but at the end of the day all that really matters is the ride. Our 26” BJ is designed to go fast and high, soak up bumps and brake better than its smaller counterparts. And unlike a smaller-rigid bike, a 26” bike with a suspension fork and disc brake not only roasts transitions almost effortlessly, it leaves riders in better condition to have just as much fun the next day.

  • Geometry based on 100 – 120mm Suspension or equivalent rigid fork
  • Headtube accepts 1.5” Tapered Steerer
  • Disc size is 160mm with 0mm IS to POST mount adaptor
  • Final stickers have not been decided on yet.

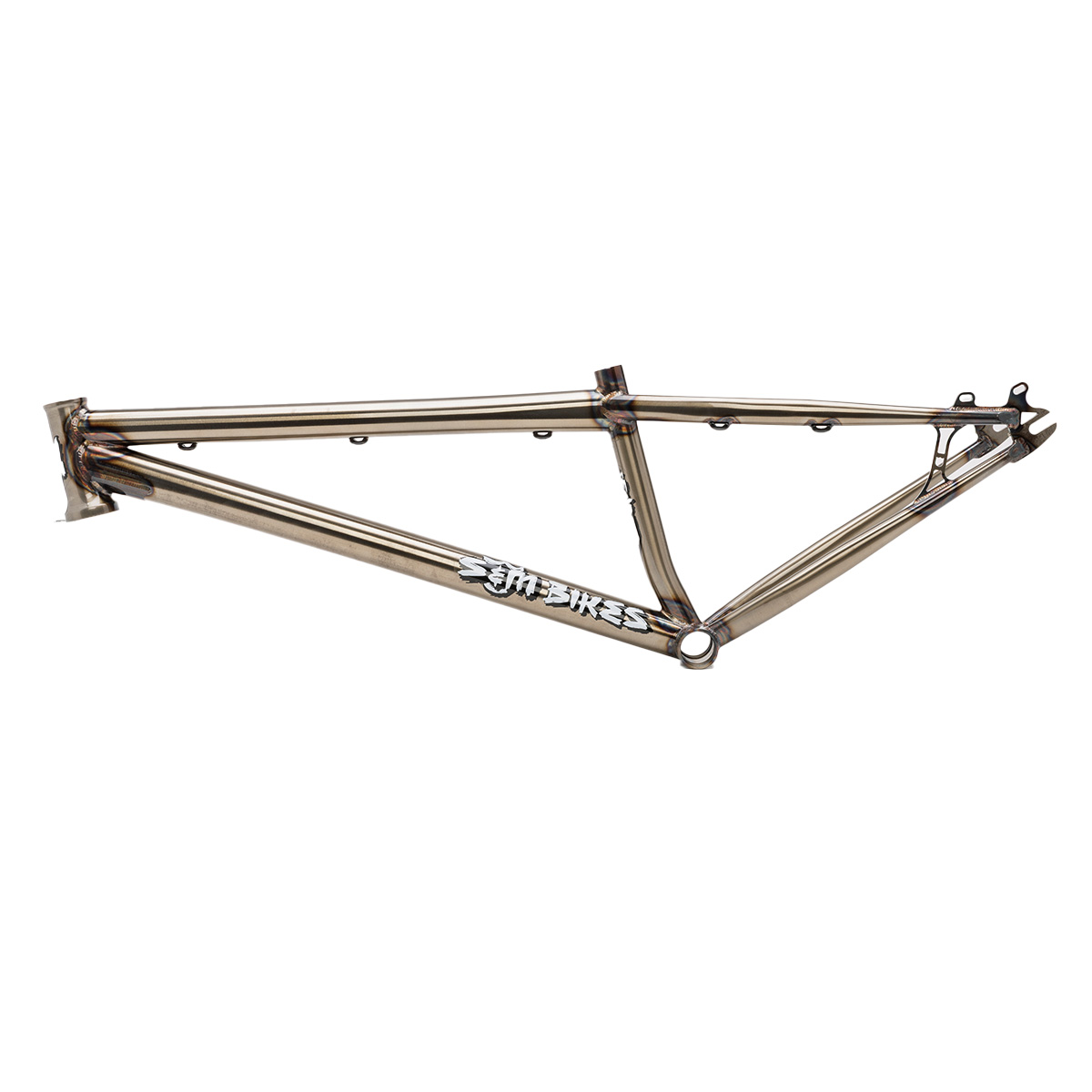

Raw Dog – This is Gloss Clear, same as a BTM frame and many other S&M/FIT parts. Gloss Clear is a transparent clear polyester and has a high gloss finish.

Limousine Black – This is a small tweak on gloss black – same as Hoder BTM Xl frame. Sample pictures are done in this shade of black. Keith Hartwell is currently riding this sample.

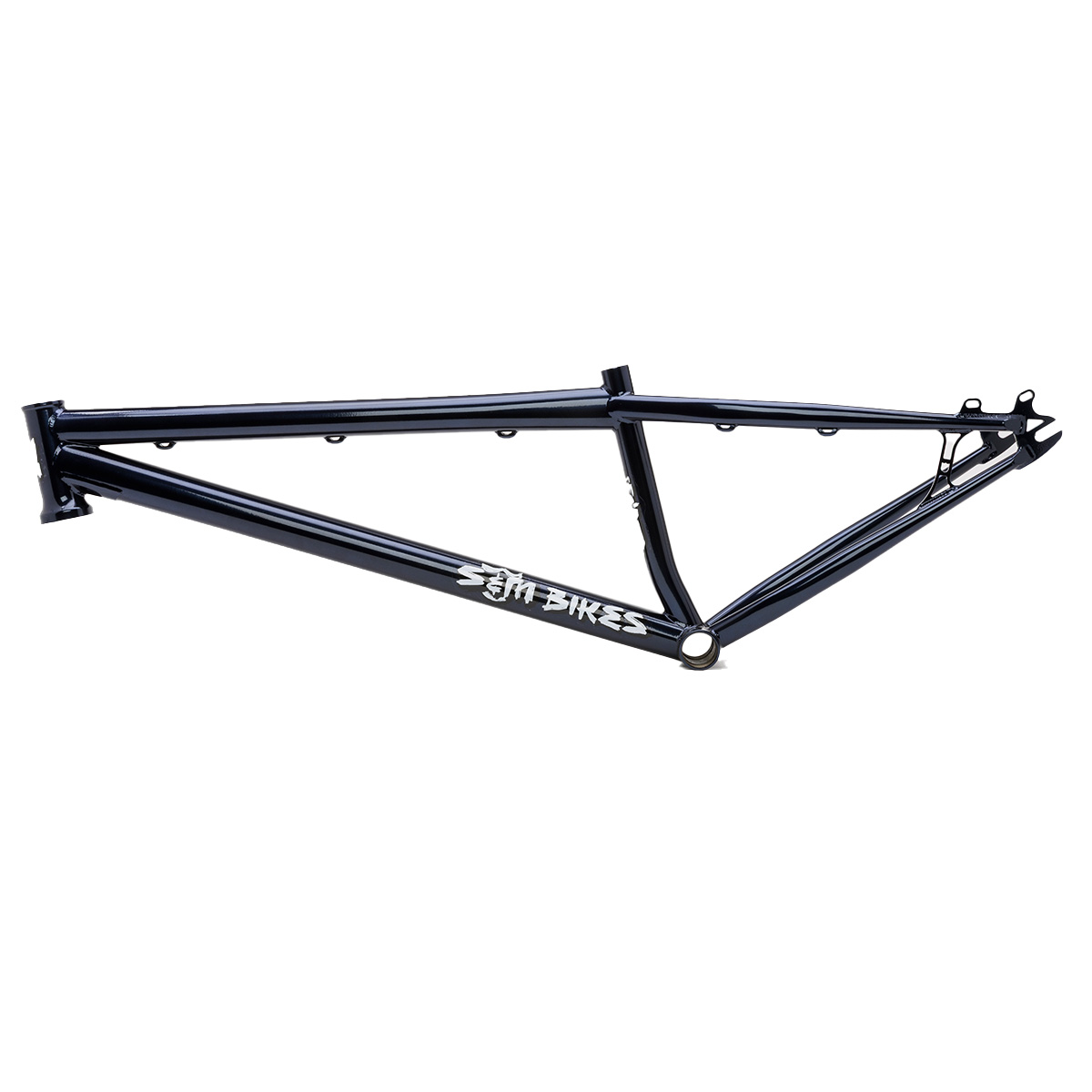

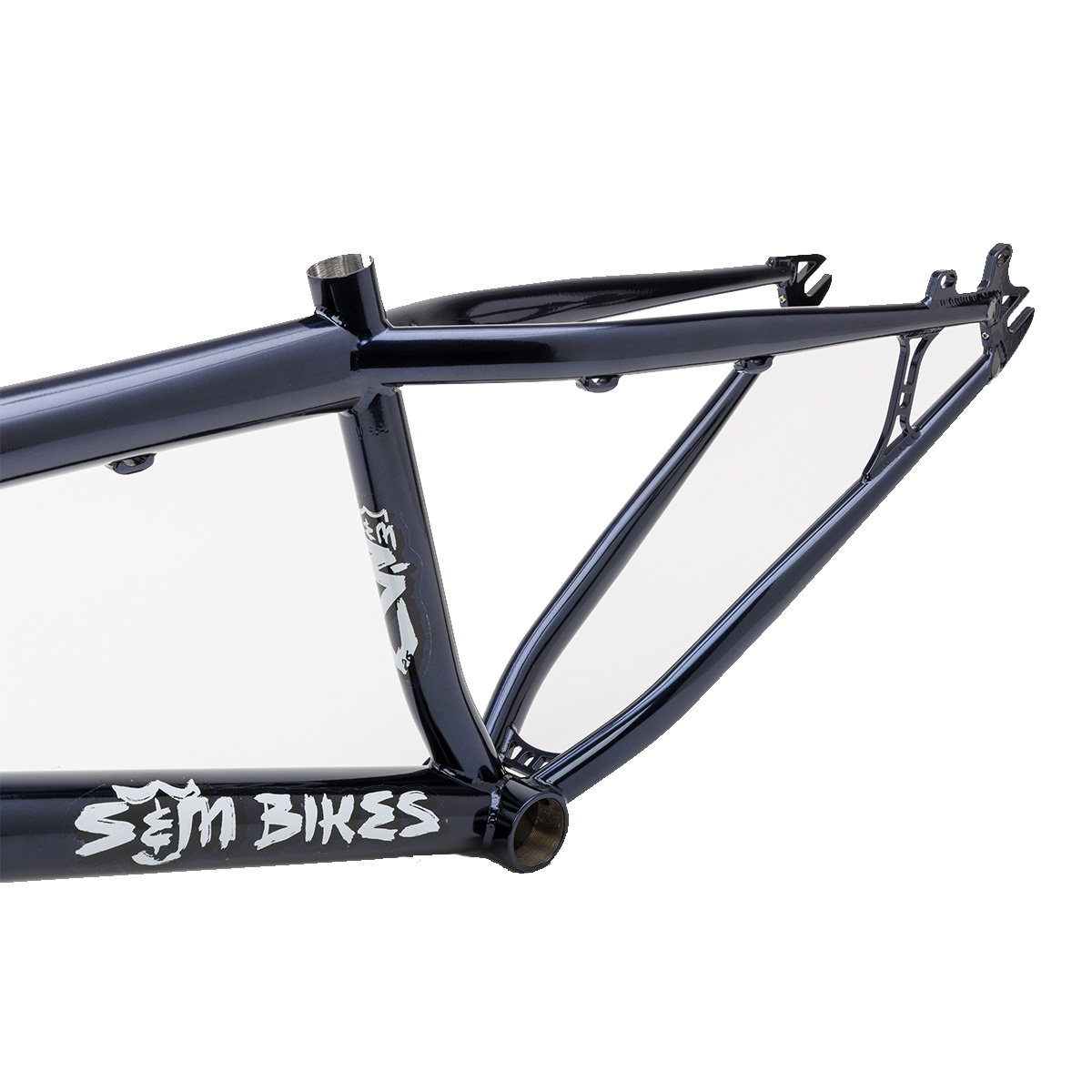

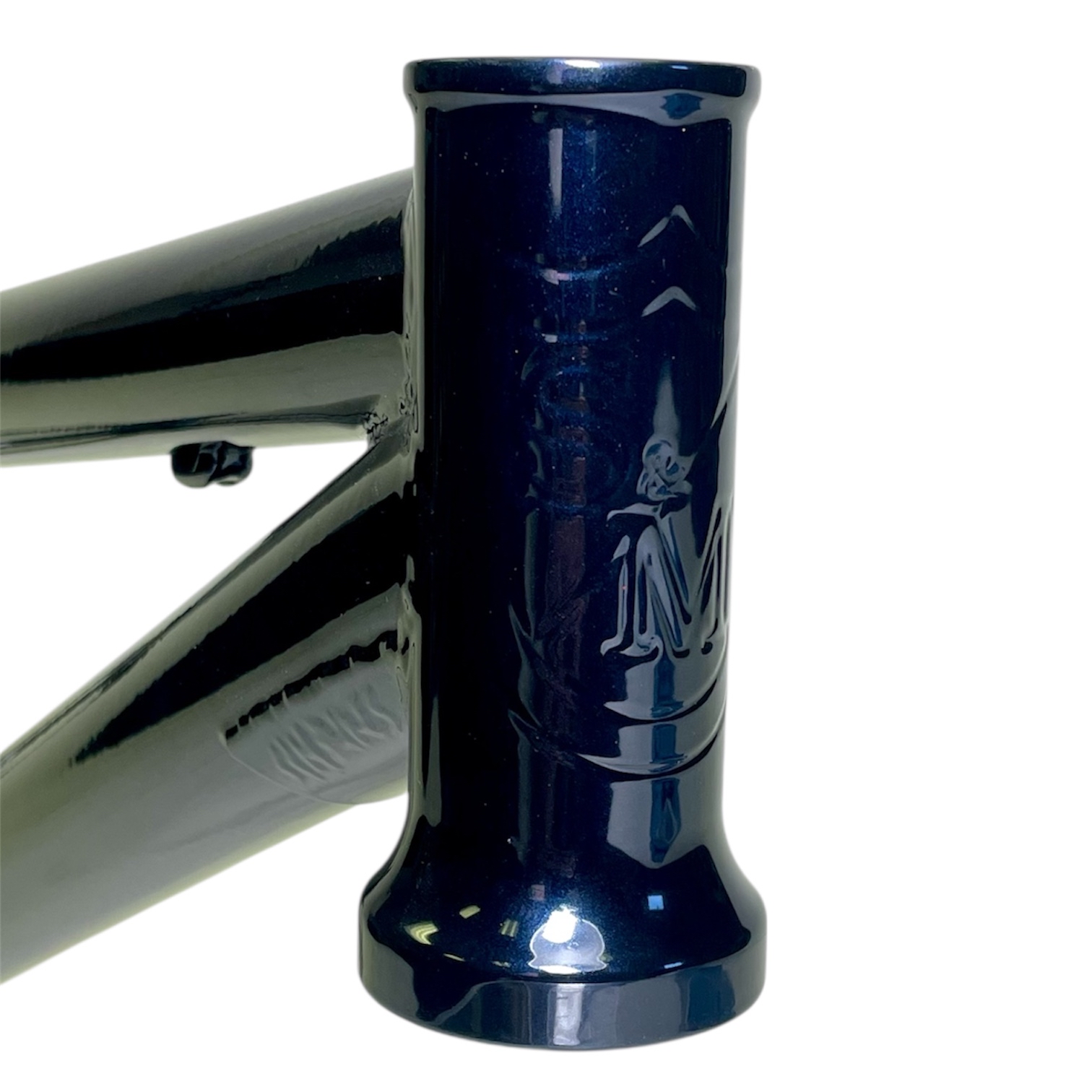

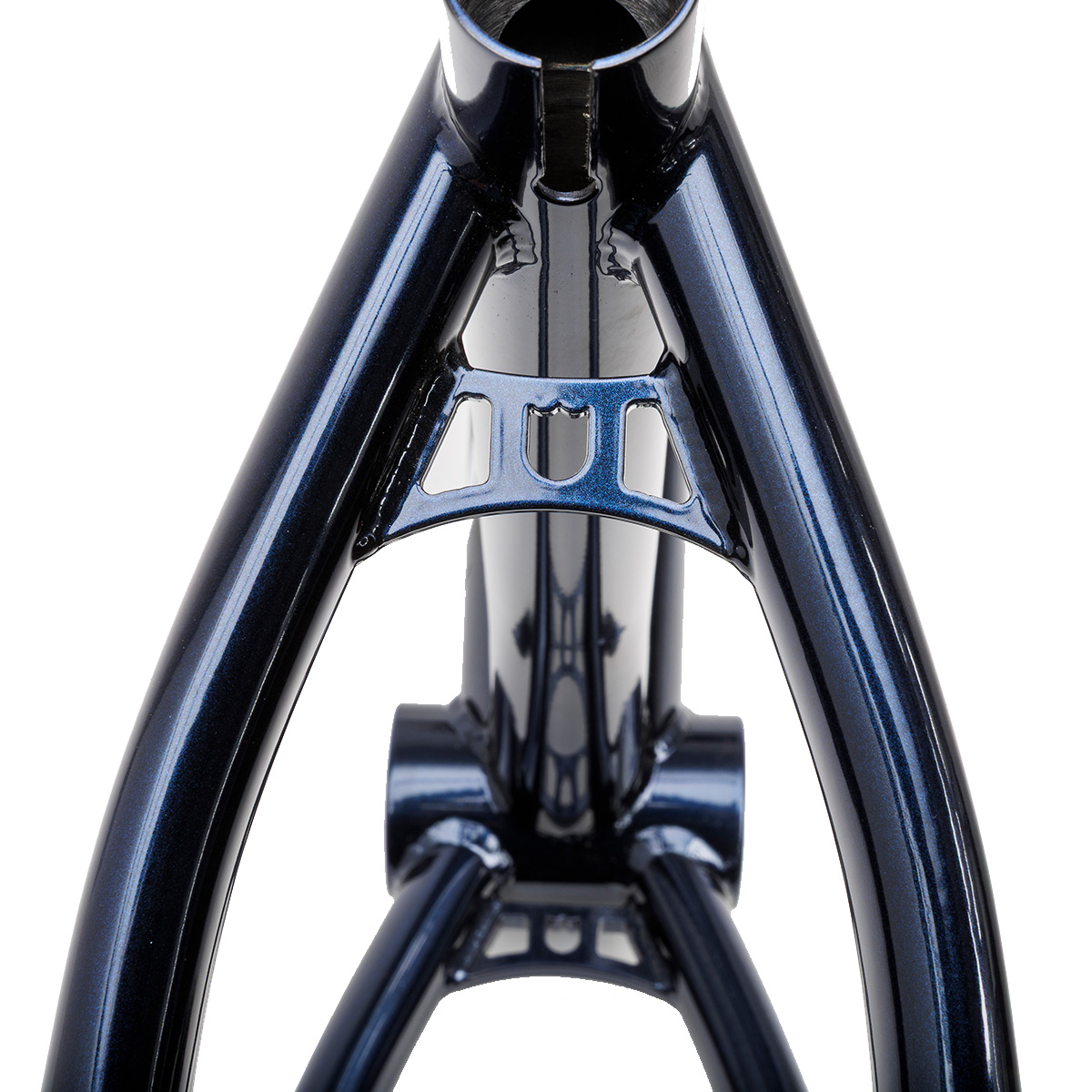

Blue Steel (new color) – This is a deep navy blue metallic. This color is a polyester metallic powder coat with a glossy finish. A clear topcoat is applied to enhance the look of this color and to improve UV resistance and overall durability.

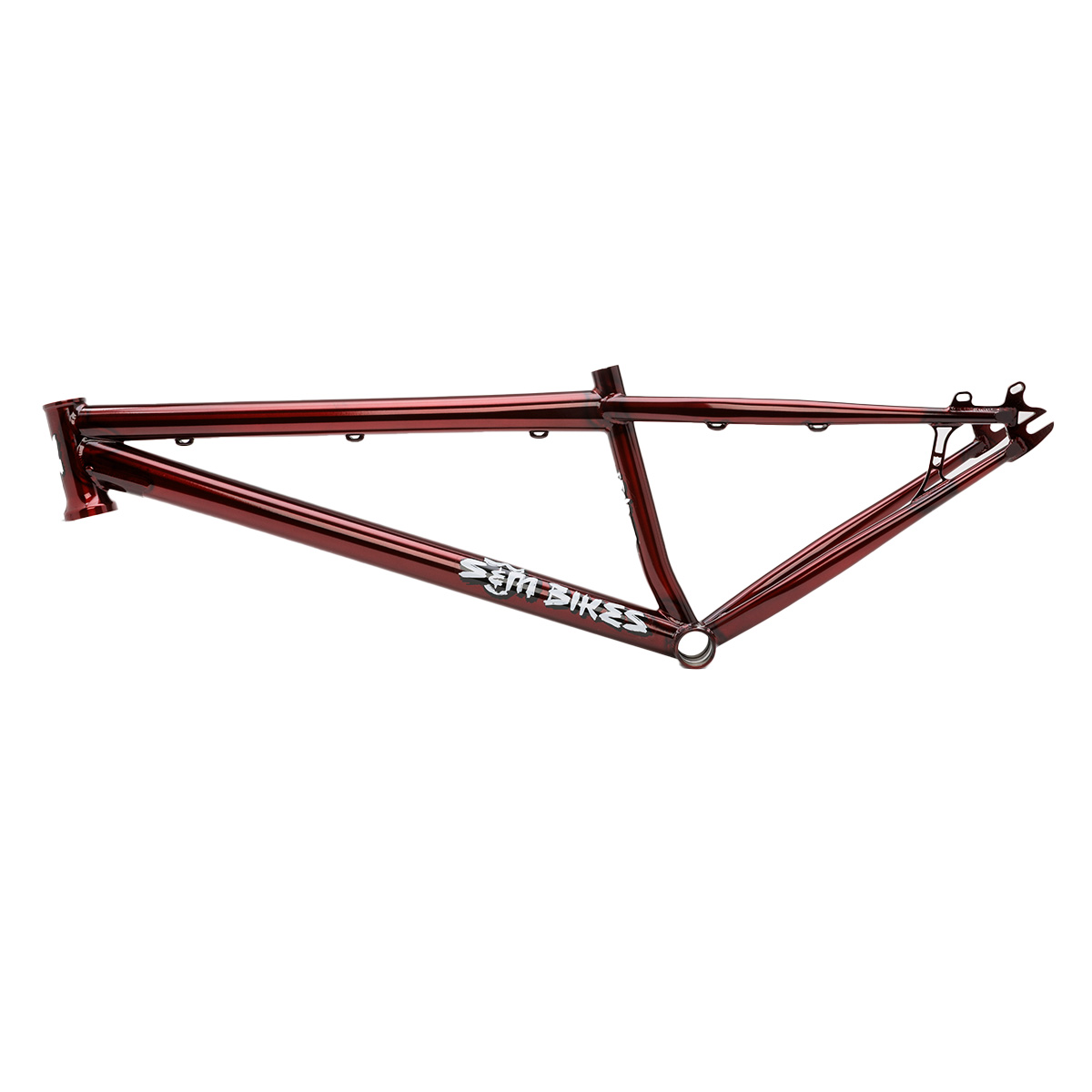

Satan Red (new color) – This is a transparent dark maroon-red. This color is a polyester top coat powder coat and has a high gloss finish. Very close to ATF XL Trans Burgundy but a little more red.

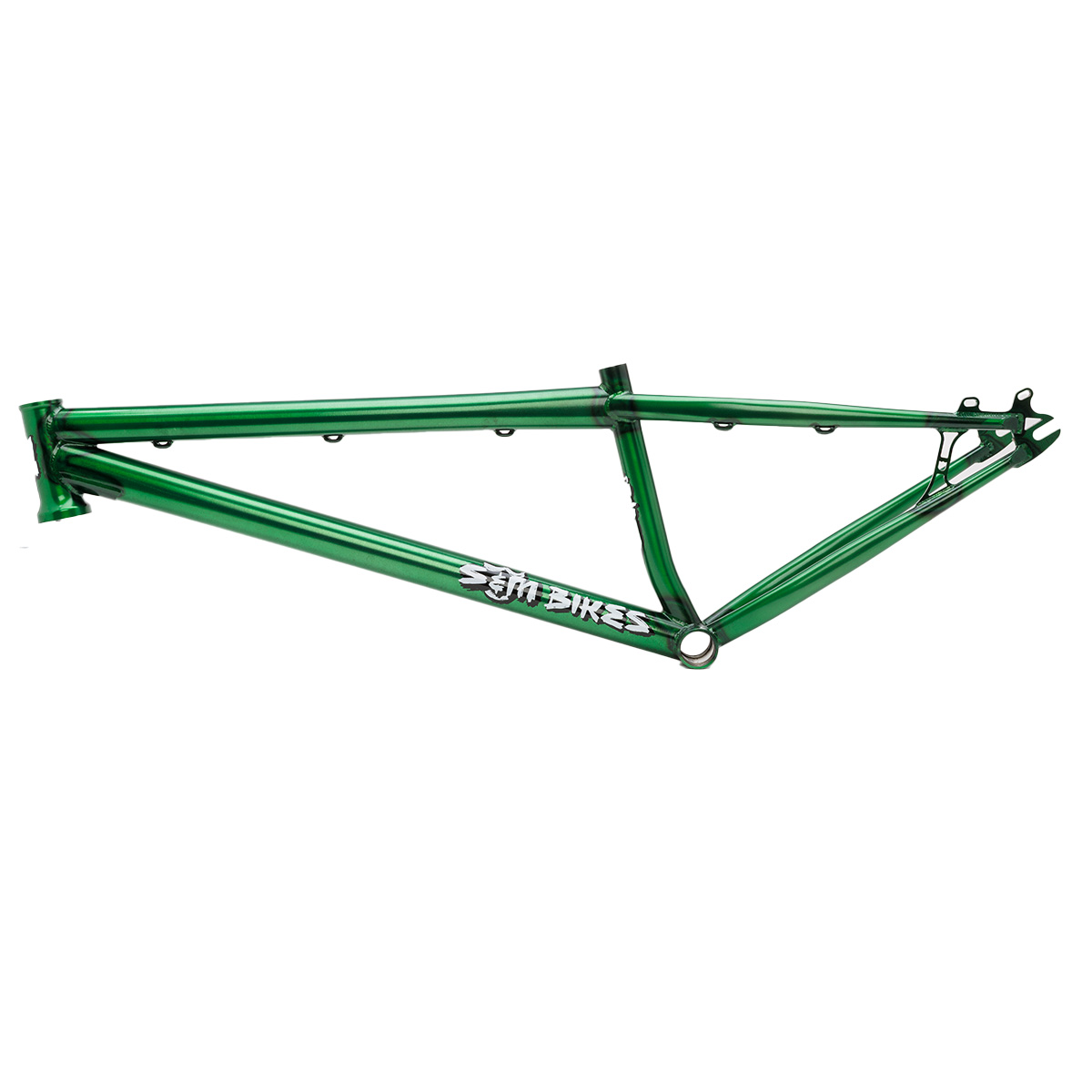

Gangrene (new color) – Dark Trans Green.

SKU: N/A Category: Tags: , , , , , Brand:

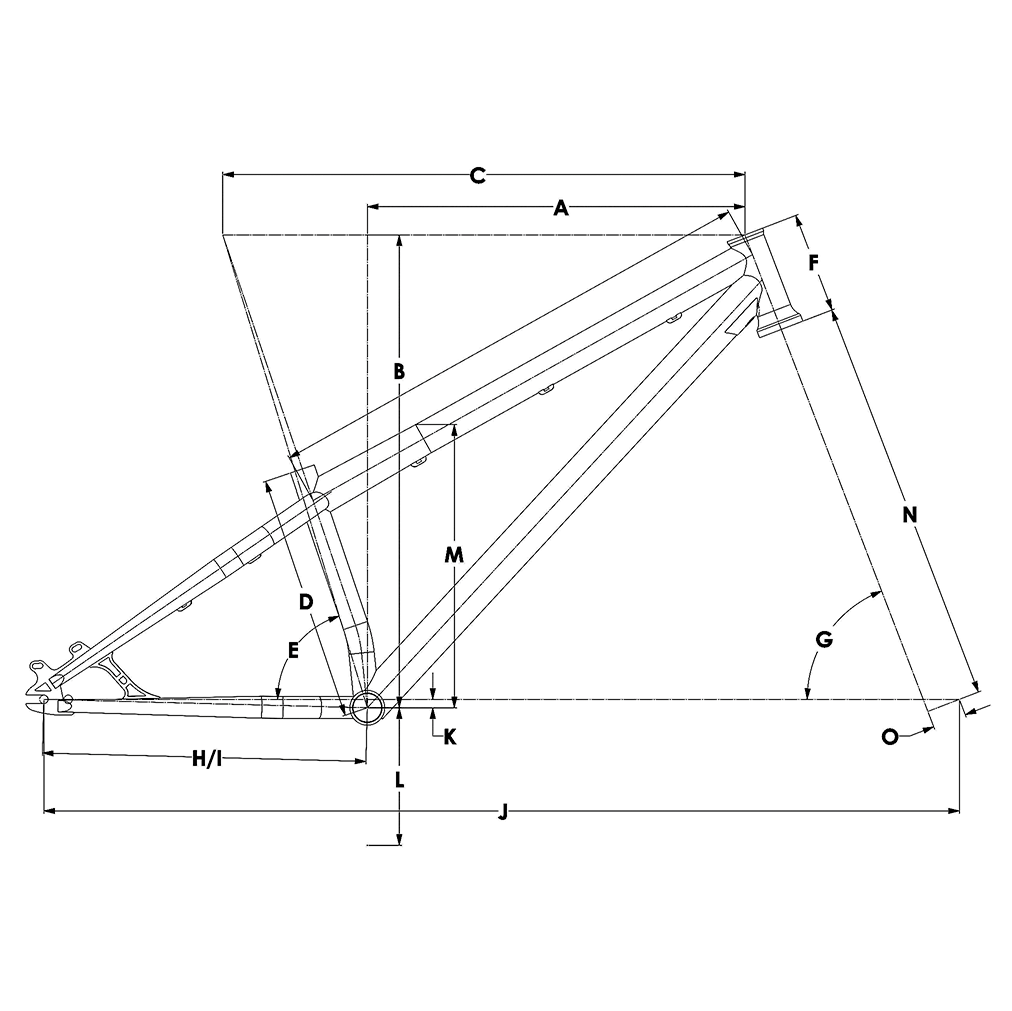

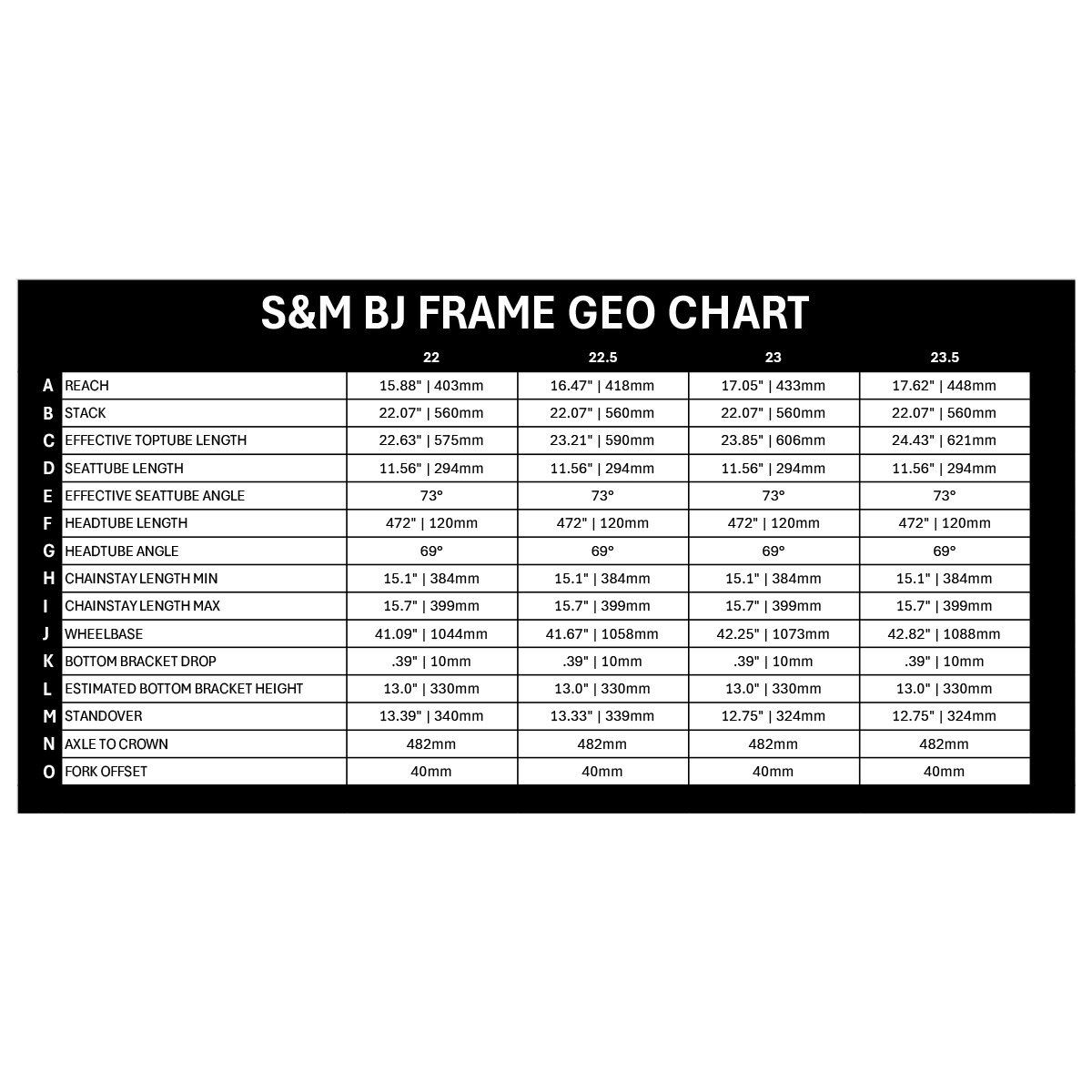

TOP TUBE LENGTHS 22″, 22.5″, 23″, 23.5″
REAR END LENGTH 15.1″ Slammed
HEAD TUBE ANGLE 69°
STANDOVER HEIGHT 10″
B.B. HEIGHT 12.6″ (.400″ Drop)
SEAT TUBE ANGLE 73°
HEAD TUBE 120mm Tall Integrated 42/52 Style
B.B. STYLE 73mm Euro BB
BRAKE MOUNTS 160mm Disc with 0mm IS to POST mount adaptor
DROPOUTS 3/8″ Slot, 135mm Spacing w/Integrated Tensioners
SEAT POST SIZE 27.2mm Post – 30mm Clamp
WEIGHT 5.6 lbs (22″ TT)
MAX TIRE 26″ X 2.25″ slammed (2.35″ pulled back a bit)
MAX SPROCKET 30T standard chain line (32 with additional Spacers)
