S&M WIDEMOUTH PITCHFORK (26MM OFFSET) (20″ & 22″)

Name: S&amp;M WIDEMOUTH PITCHFORK (26MM OFFSET) (20" &amp; 22")
Brand: S&amp;M Bikes
SKU: 1764
Availability: InStock

$209.95

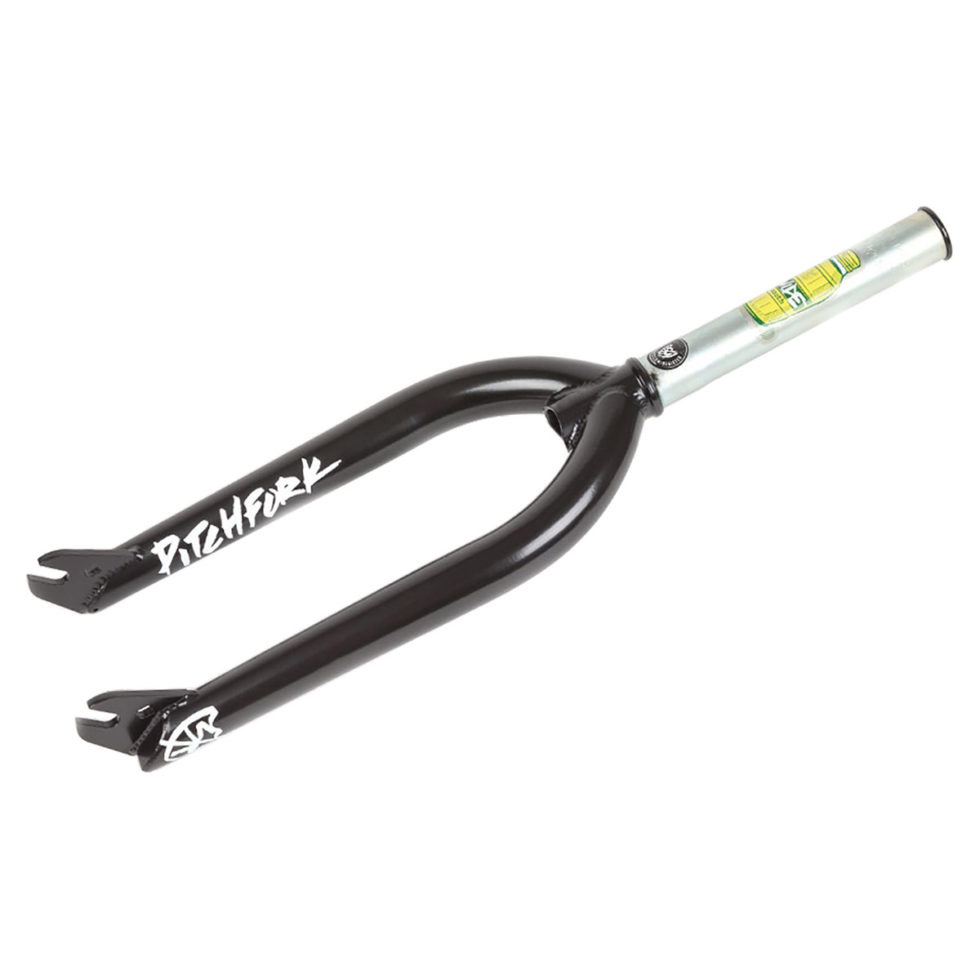

The tried and true S&M Widemouth Pitchfork offers plenty of tire clearance in a steeper 26mm offset for a more responsive front end. Less fork offset creates a shorter overall wheelbase for more responsive handling of your entire bike. Nose wheelies, pivots and a balance point that’s easier to reach. Believe and achieve. For 20 or 22″ wheel sizes. Made in USA

Size

Color

Clear

SKU: N/A Category: Forks Tags: 26mm, pitchfork, widemouth Brand: S&M Bikes

Description

LEGS	Double Butted, Tapered, 4130 CrMo

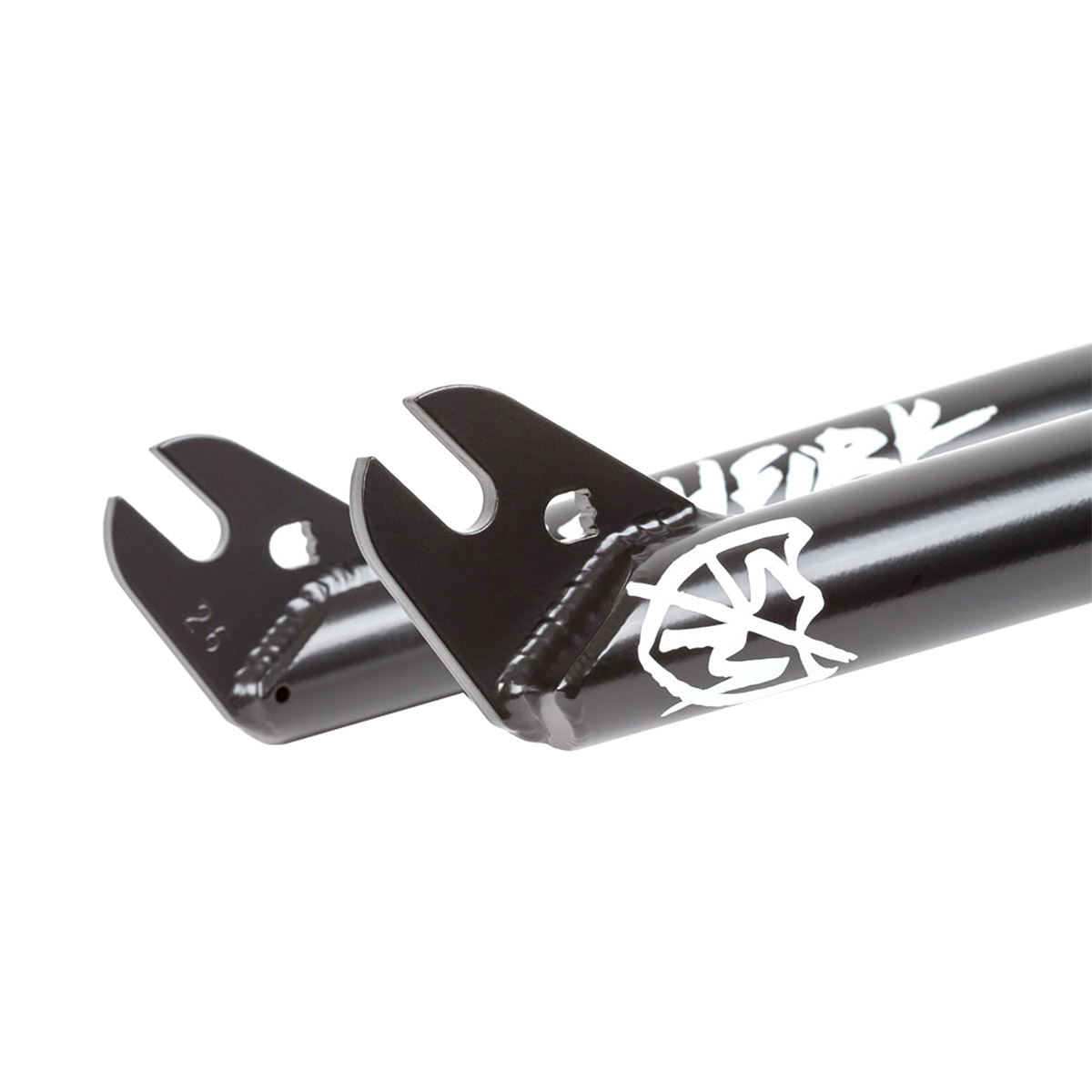

DROPOUTS	Laser Cut 3/8″ Slot

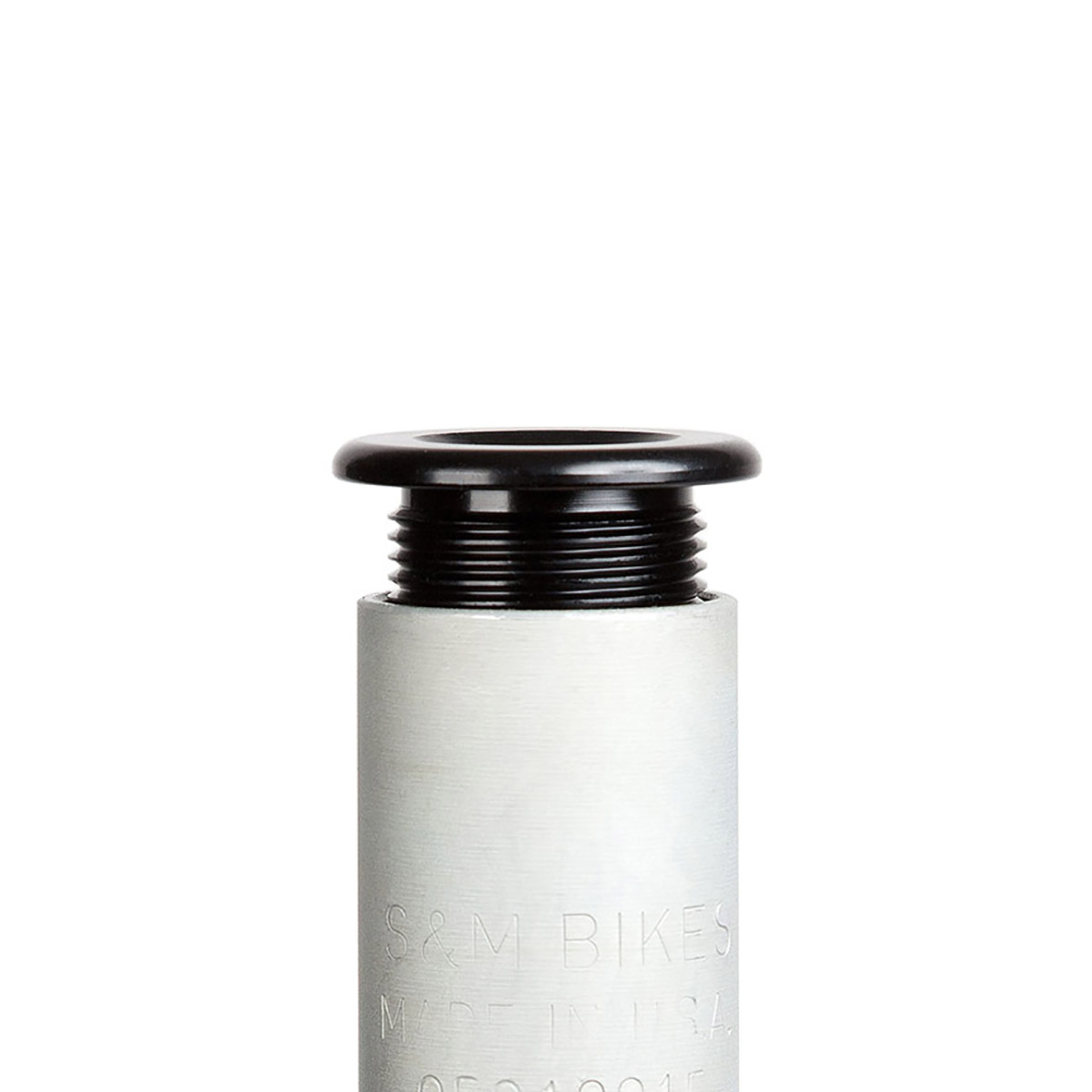

STEERER TUBE	Integrated Bearing Race. 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
STEERER TUBE LENGTH	173mm
COMPRESSION	M24 X 1.5 Thread – 6mm Allen Slot
AXLE TO CROWN HEIGHT	20″ – 320mm 22″ – 345.9mm
OFFSET	26mm
WEIGHT	1.99 lb (.90 kg) 20″ 2.35 lb (1.06 kg) 22″
HEAT TREAT	4Q Baked Post-Weld
TIRE CLEARANCE	MAX CLEARANCE 2.45″
