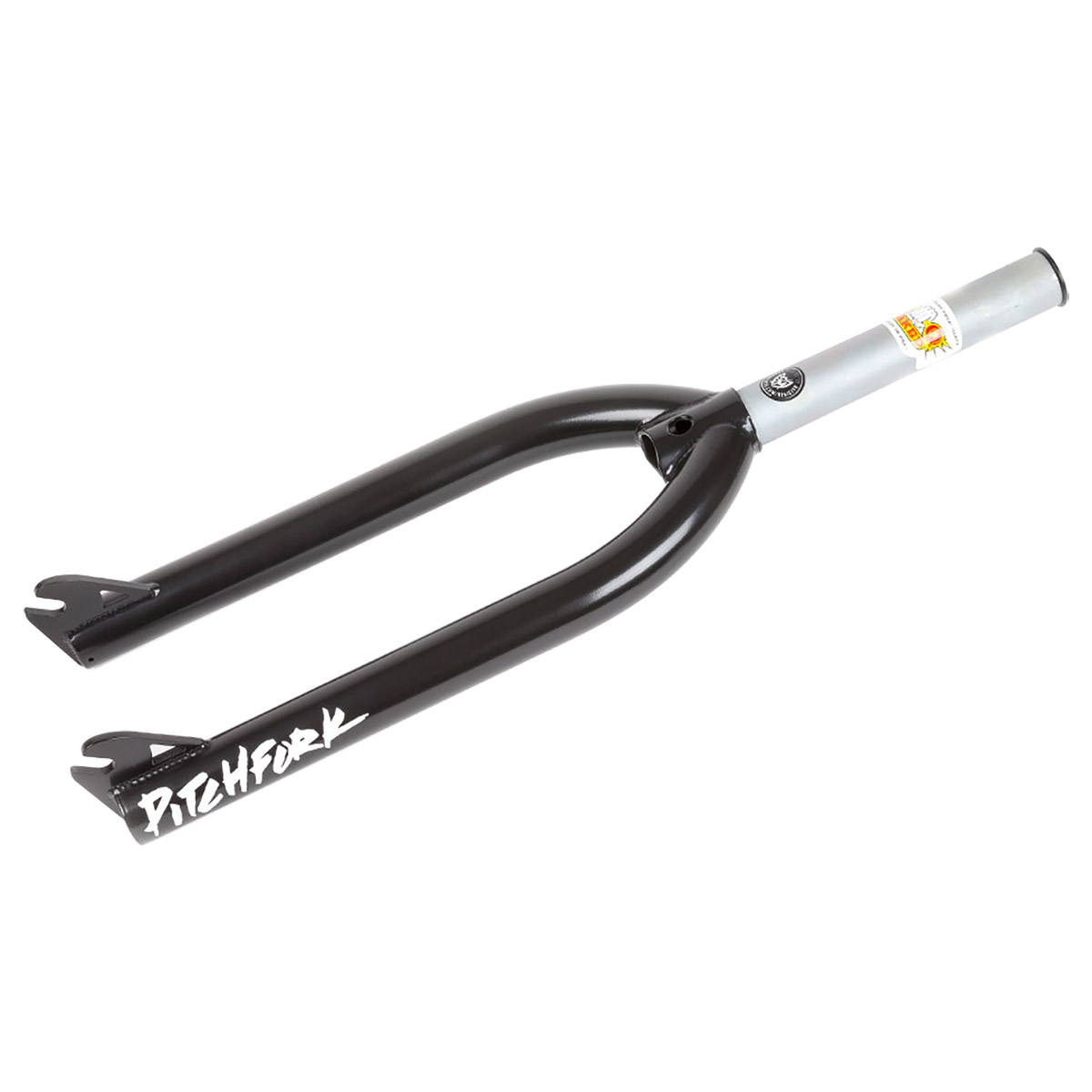

S&M PITCHFORK accepts press-on bearing race (18″,20″,22″,24″,26″)

Price range: $209.95 through $219.95

The original PITCHFORK – Made in USA from genuine 4130 Cro-Mo! Features include laser cut drops, a CNC’d one piece steerer tube and a 6061 extruded steerer tube insert. This model requires a standard bearing race.

26″ Model can be used with adaptor for 1.5″ headset and features a 203mm steerer tube and 425mm axle to crown.

SKU: N/A Category: Tags: , , , Brand:



LEGS Double Butted, 4130 CrMo
DROPOUTS Laser Cut 4130 CrMo
STEERER TUBE 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert, Requires standard bearing race included with headset
STEERER TUBE LENGTH 162mm, 203mm (26″)
COMPRESSION M10 X 1.25 Thread – 6mm Allen Slot
(26″ does not include compression nut/bolt)
AXLE TO CROWN HEIGHT 290.1mm (18″)
315.5mm (20″)
340.9mm (22″)
366mm (24″)
425mm (26″)
OFFSET 33mm
WEIGHT 2.16 lb (.97 kg) 18″
2.17 lb (.98 kg) 20″
2.42 lb (1.09 kg) 22″
2.52 lb (1.14 kg) 24″
2.90 lb (1.31 kg) 26″
HEAT TREAT 4Q Baked Post-Weld
Weight 3 lbs
Dimensions 23 × 6 × 3 in
