| Weight | 3 lbs |
|---|---|
| Dimensions | 23 × 6 × 3 in |

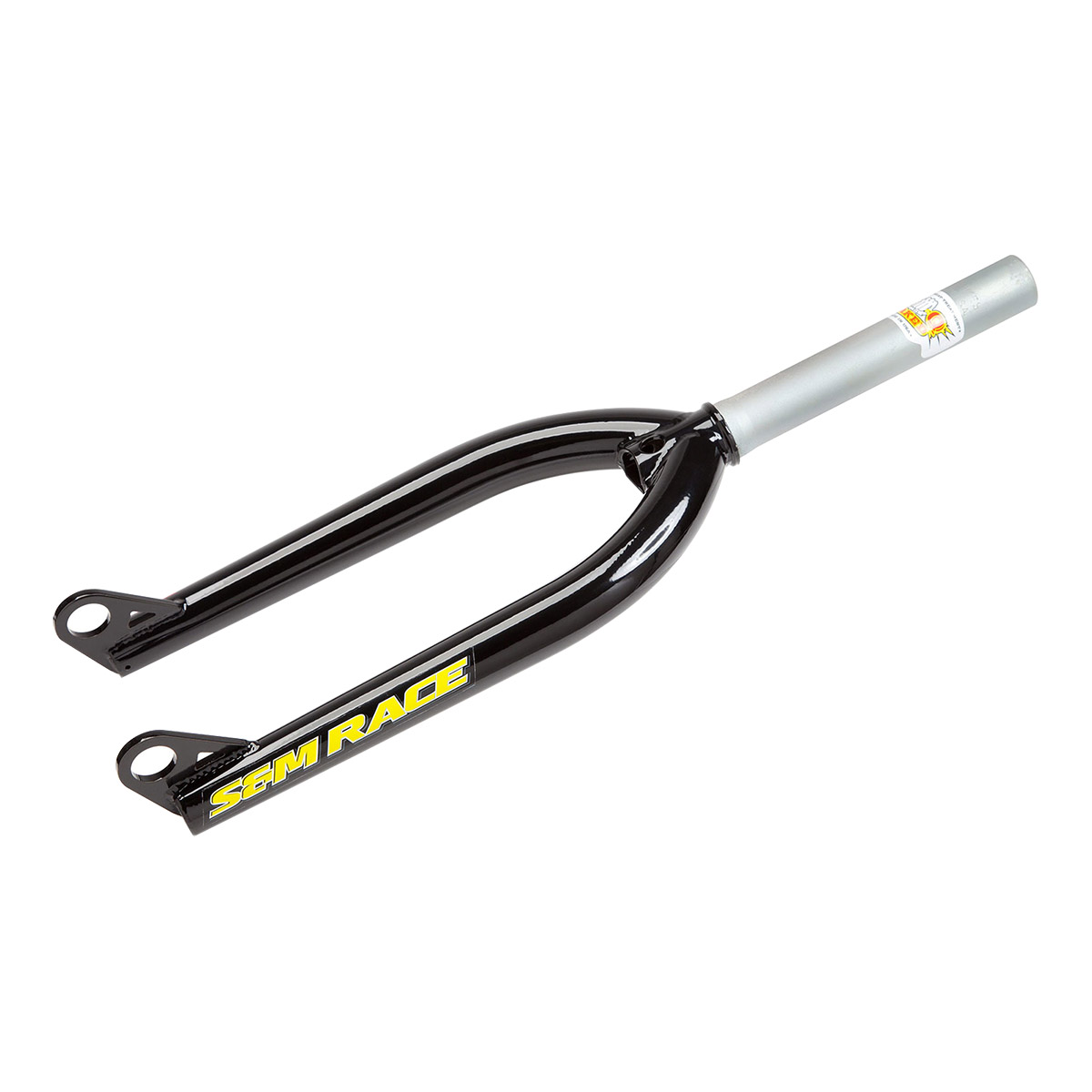

RACE XLT DUB
$209.95
Designed for use with 20mm thru-axle hubs.
| LEGS | Double Butted, Tapered, 4130 CrMo. Requires standard bearing race included with headset. |

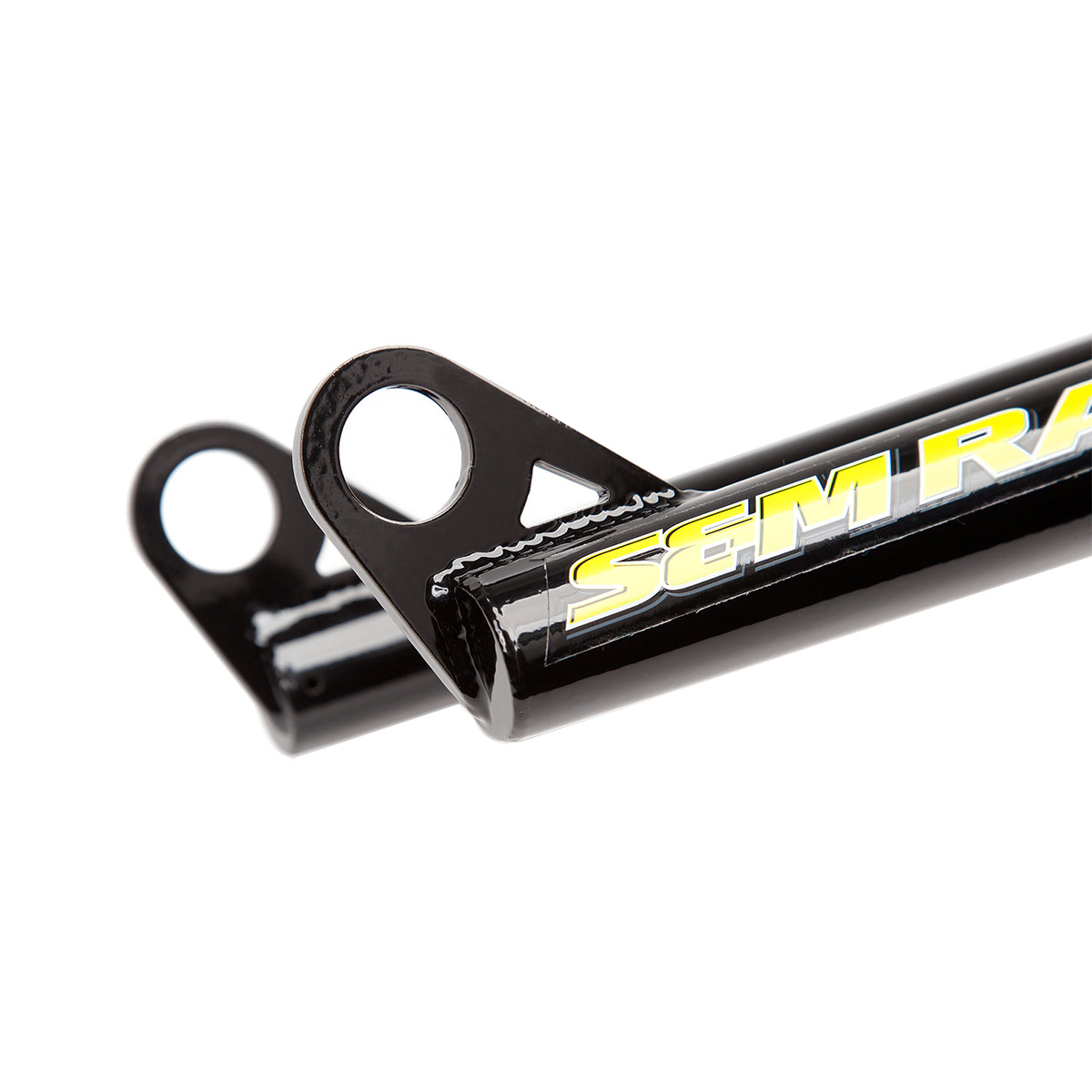

| DROPOUTS | Laser Cut 20MM THRU AXLE HOLE |

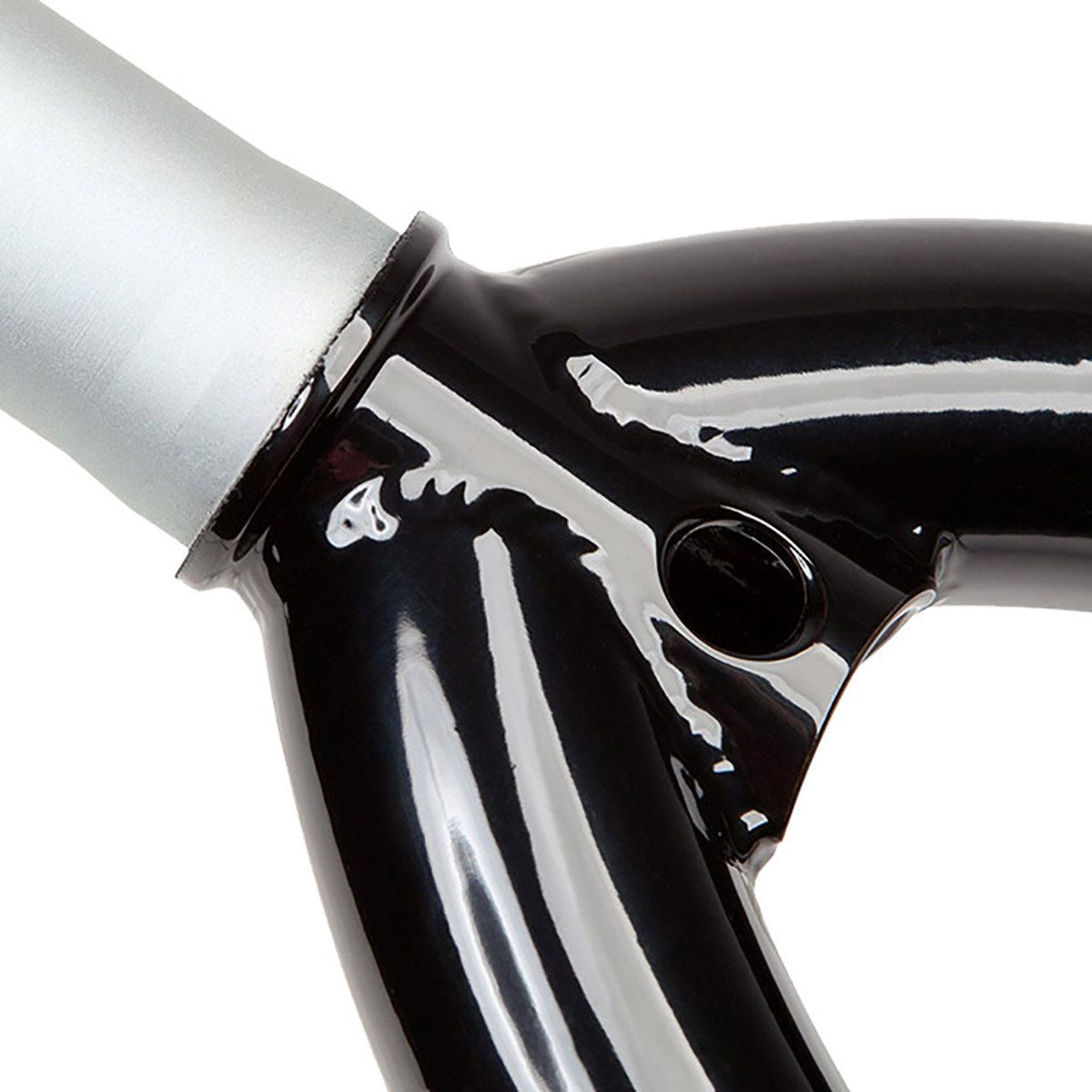

| STEERER TUBE | NON Integrated Race, 1 Piece CNC-Machined 4130 CrMo |
| STEERER TUBE LENGTH | 172mm |
| COMPRESSION | M24 x 1.5 Thread – 6mm Allen |
| AXLE TO CROWN HEIGHT | 315.5mm (20″) 366mm (24″) |
| OFFSET | 33mm |
| WEIGHT | 2.14 lb (.97 kg) 20″ 2.45 lb (1.11 kg) 24″ |
| HEAT TREAT | 4Q Baked Post-Weld |
