| TOP TUBE LENGTHS | 21″, 21.25″,21.5″,22″ |
| REAR END LENGTH | 13.4″ |
| HEAD TUBE ANGLE | 75° |

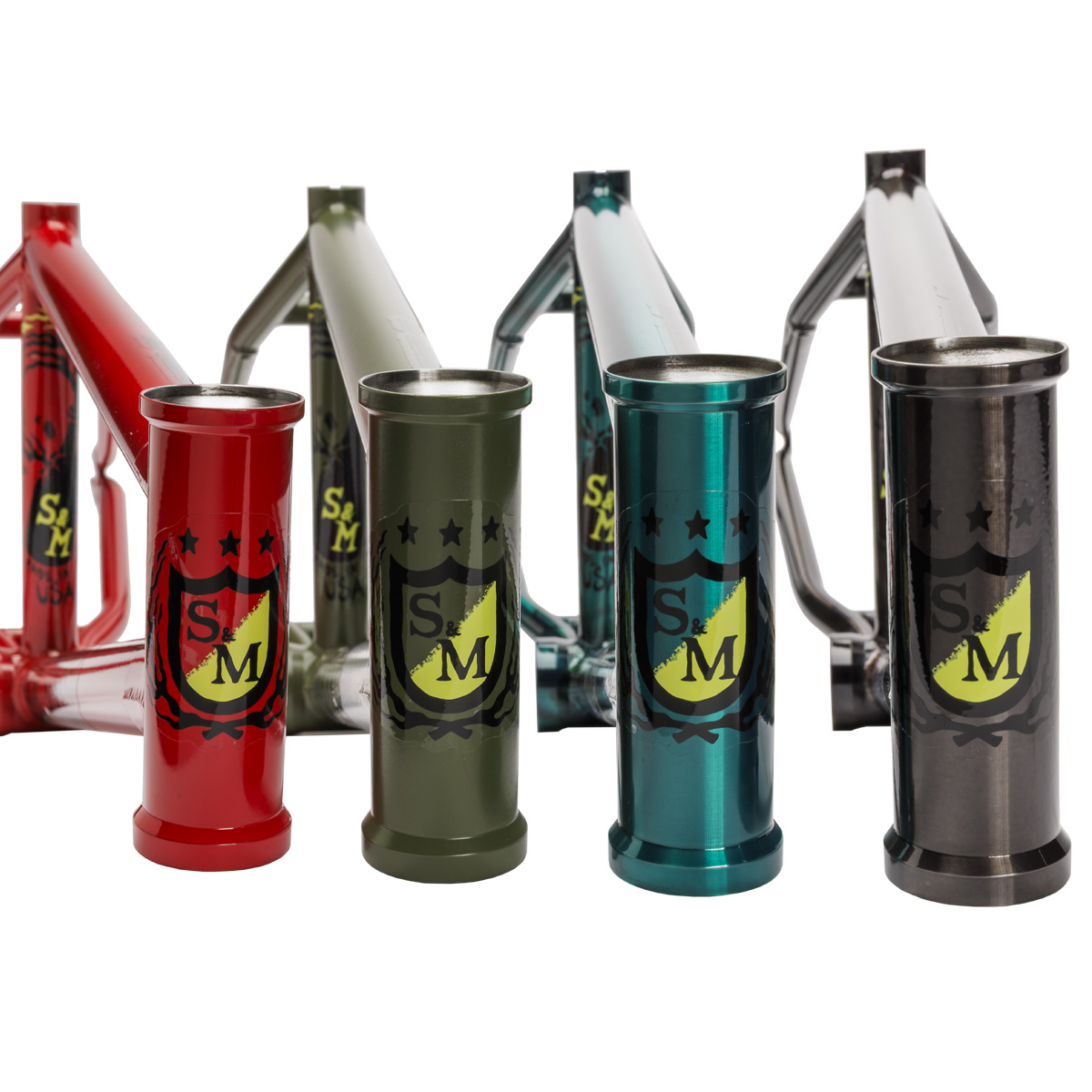

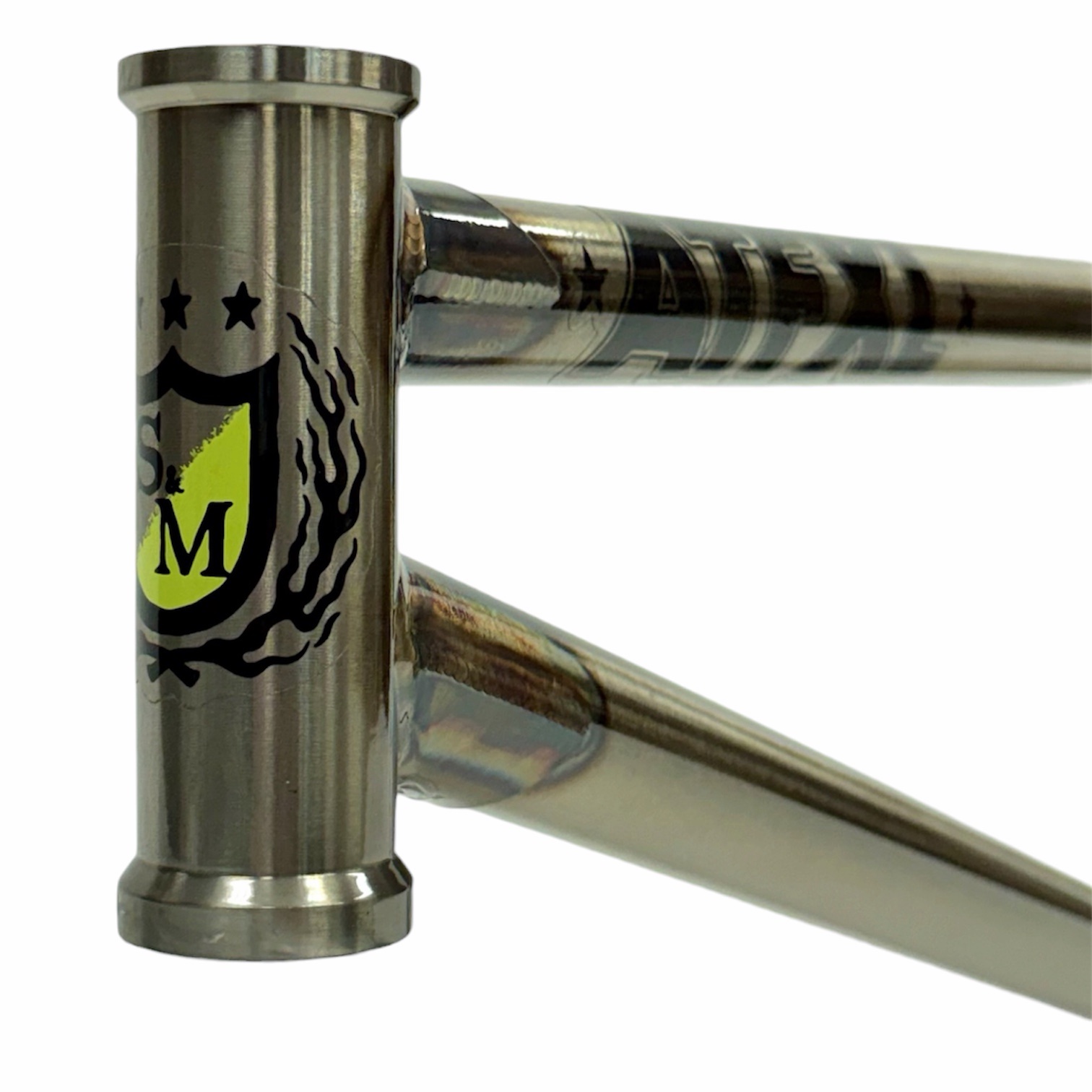

| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |

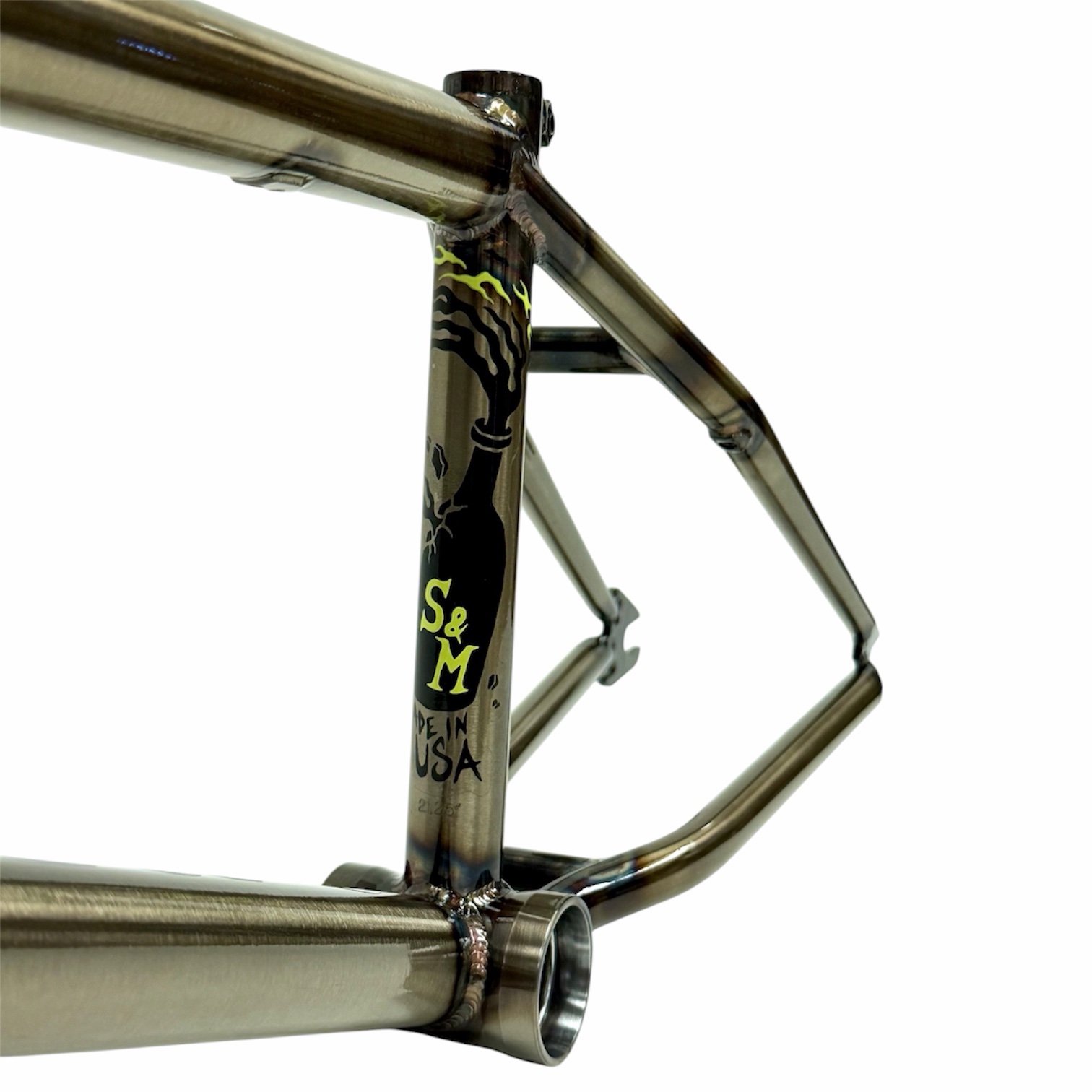

| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Integrated |
| SEAT POST SIZE | 1″ (25.4mm) |
| BB HEIGHT | 11.7″ |
| BB STYLE | Mid |
| STANDOVER HEIGHT | 9″ |
| BRAKE MOUNTS | Thread-On 990 (Mounts sold separately) |
| DROPOUTS | 14mm Slot, 4Q-Baked |
| GYRO TABS | None |
| WEIGHT | 4.75 lb (2.15 kg) |
| TUBESET | Butted Thermal-X Tubing |

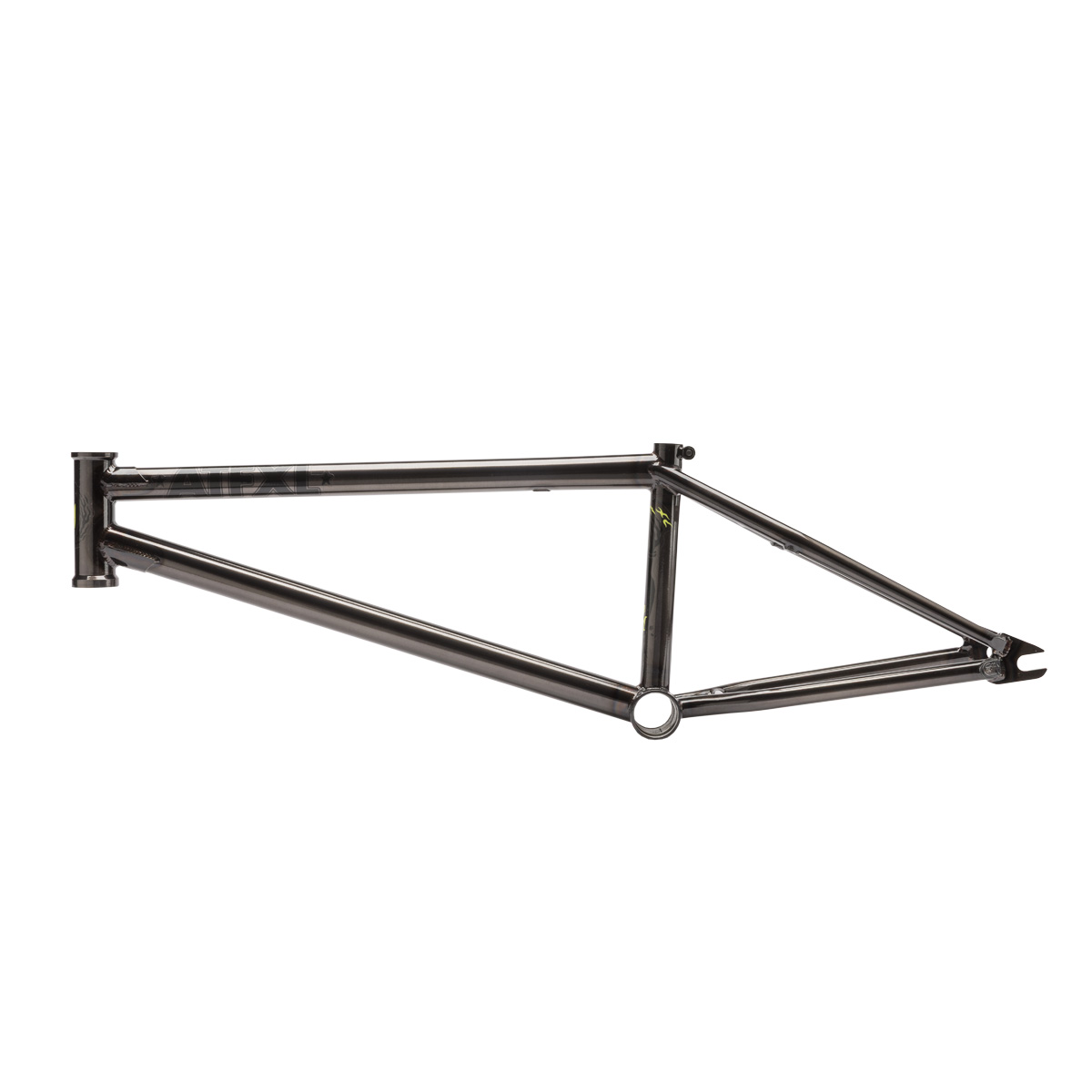

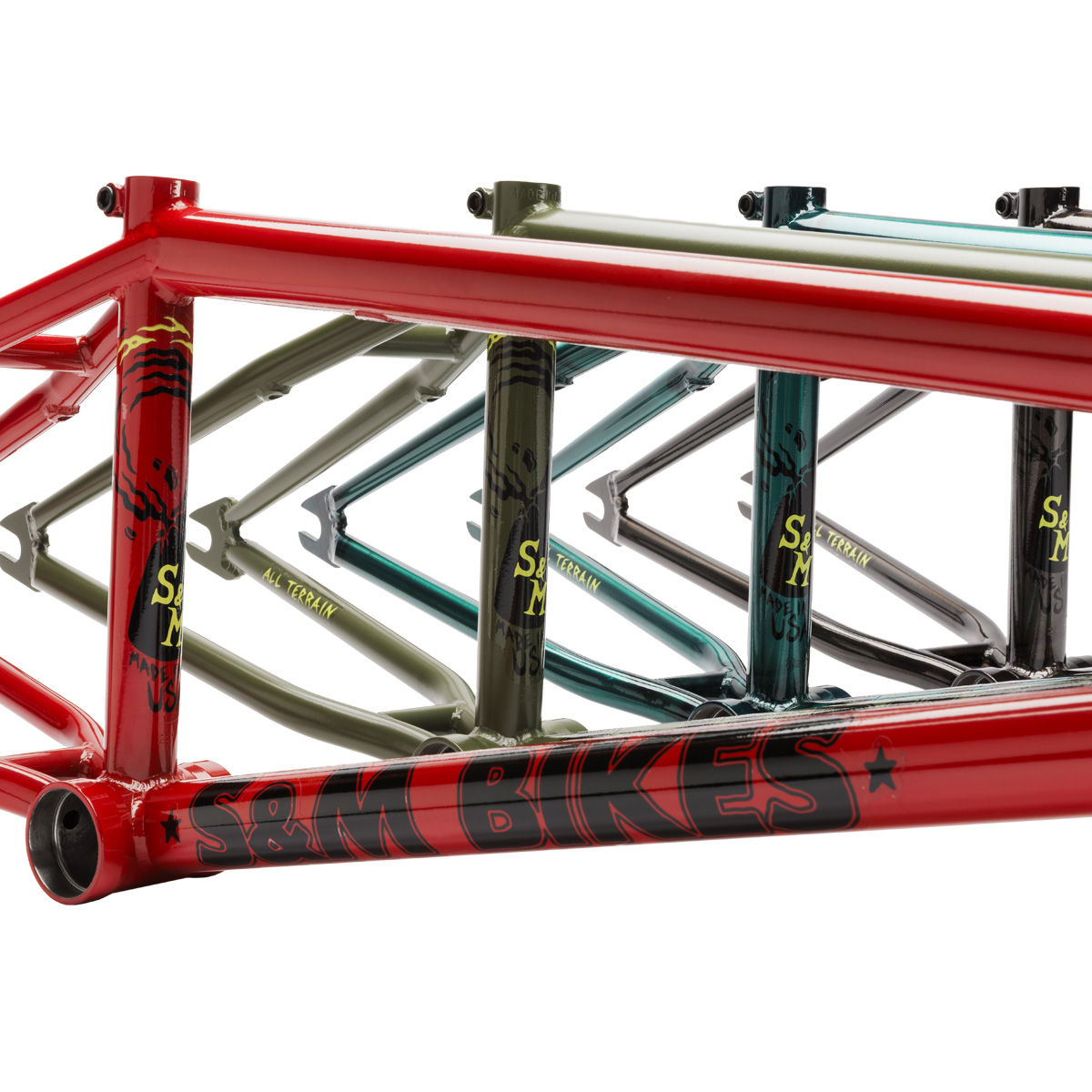

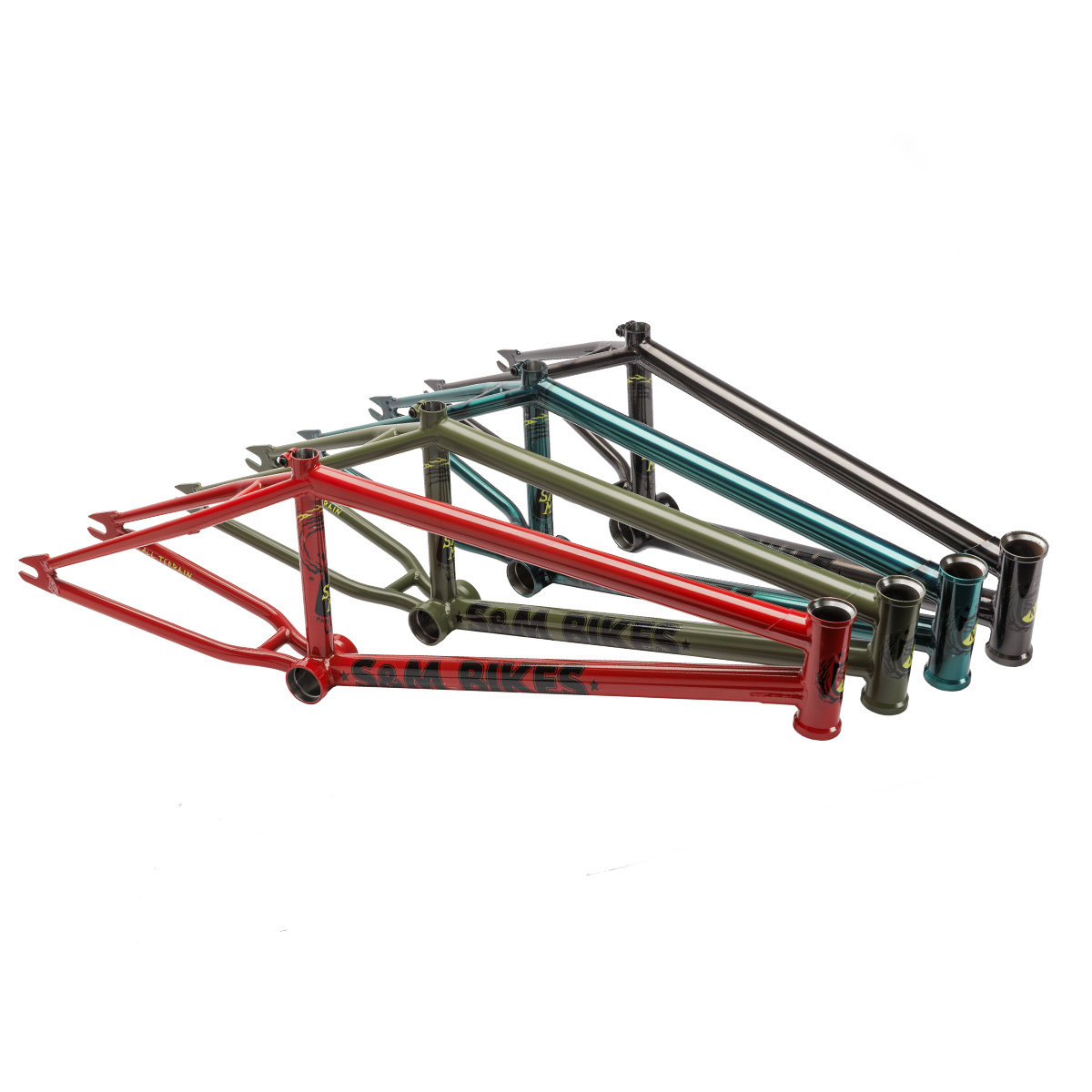

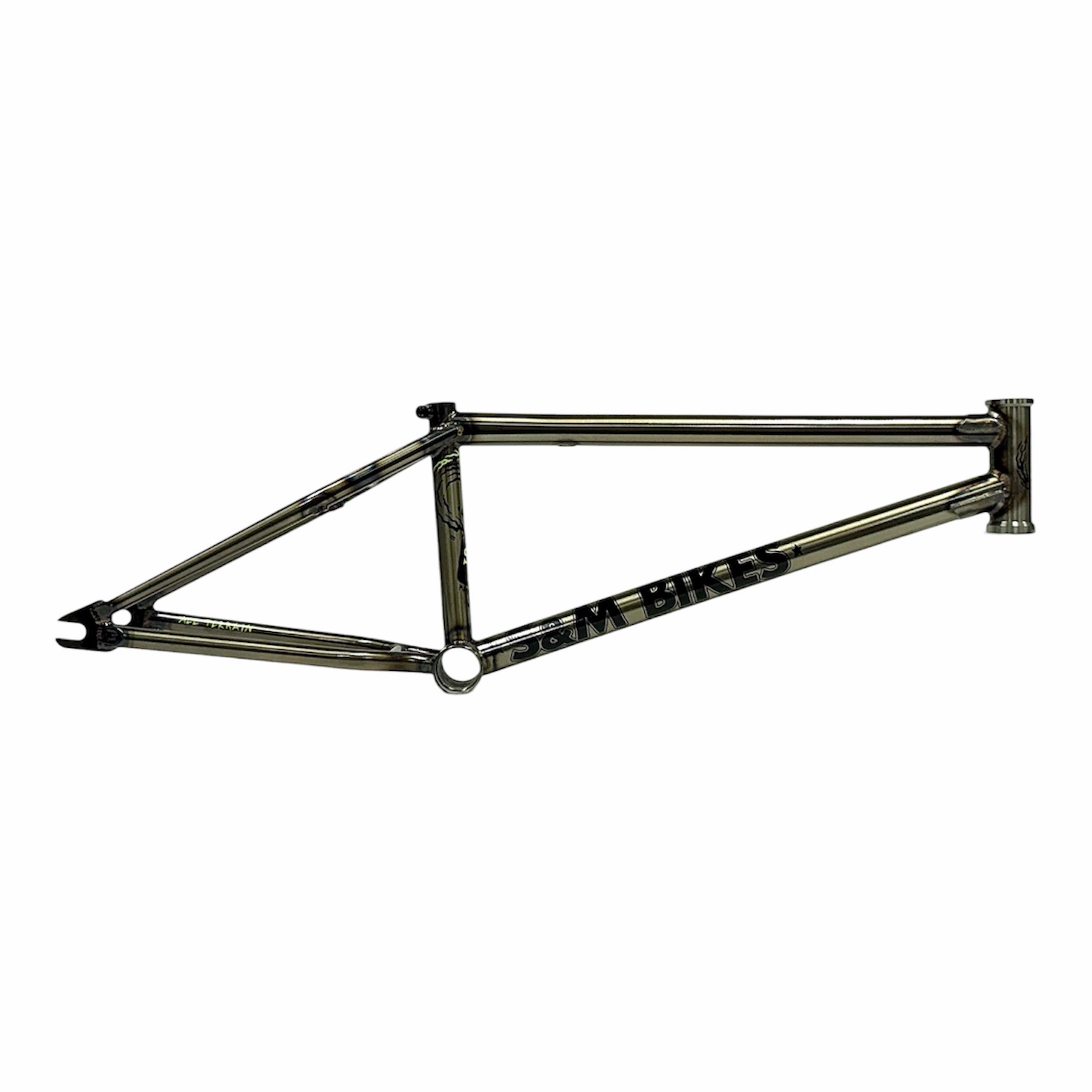

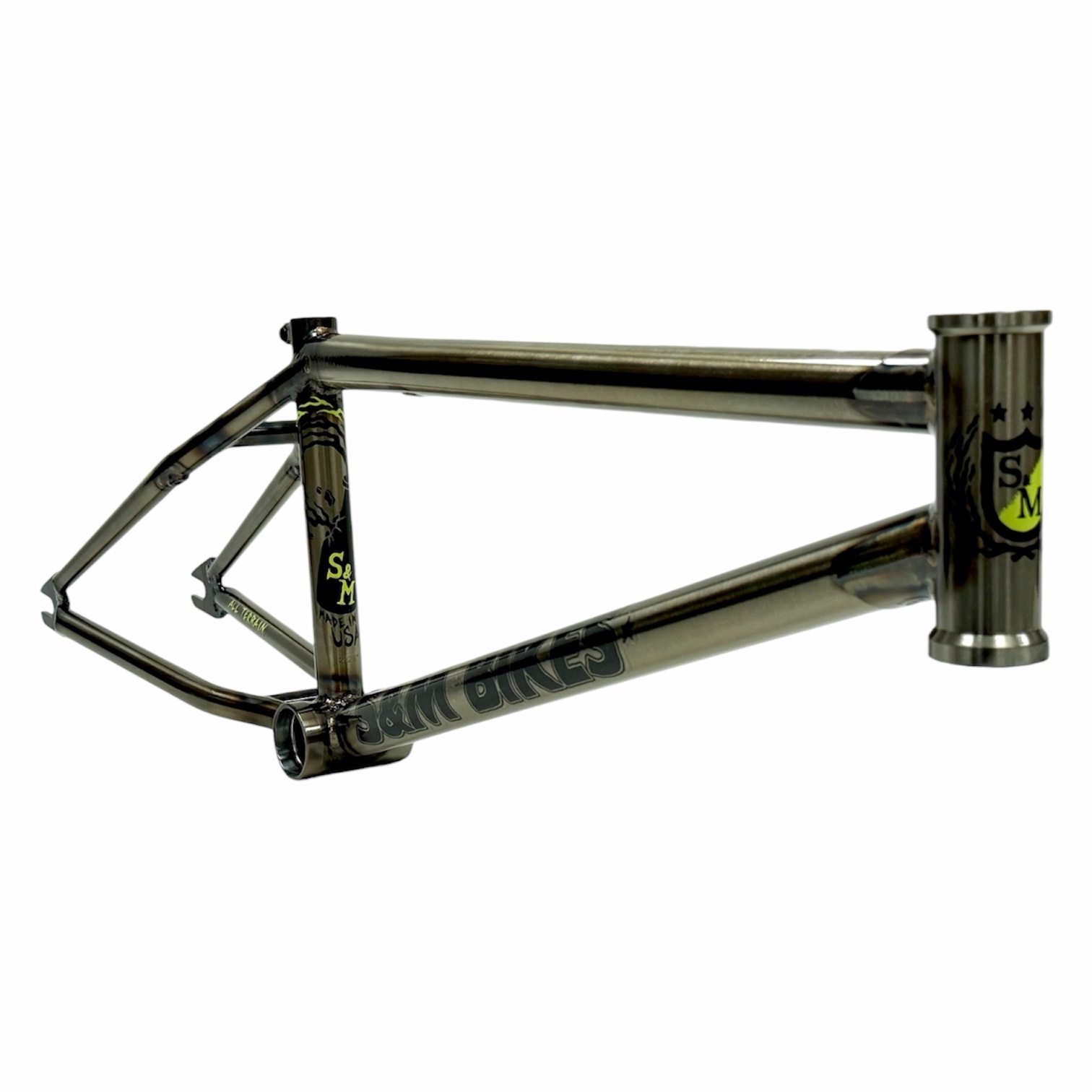

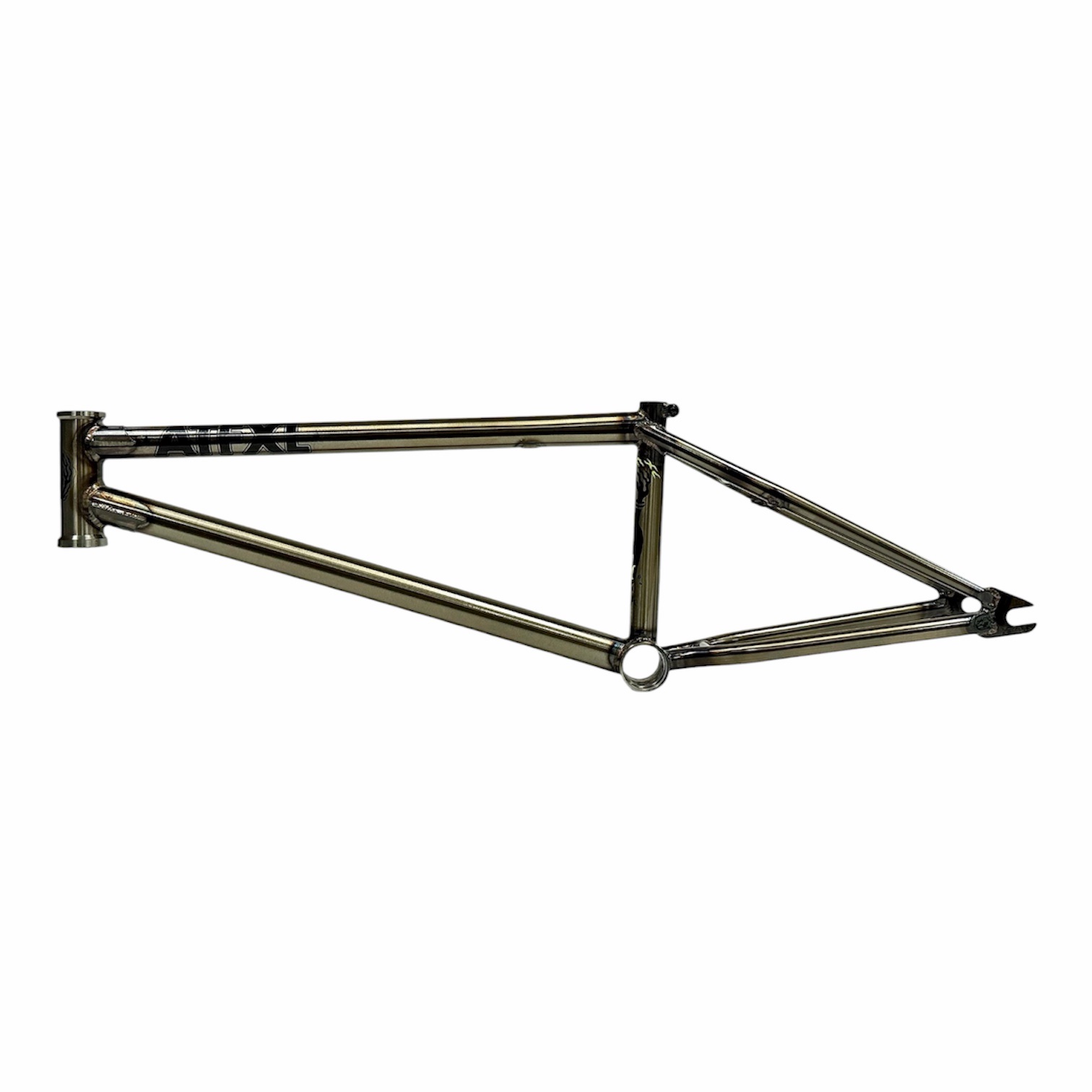

S&M ATF XL (20″ WHEELS)
$519.95
21 & up. The ATF XL takes the tried & true ATF frame to the next level. With a taller 5″ head tube, 9″ standover and extended top tube sizes up to 22″, it’s built for the tall team. The perfect blend of responsiveness and stability, ready for action on all terrains.
| Weight | 9 lbs |
|---|---|
| Dimensions | 38 × 7 × 13 in |
